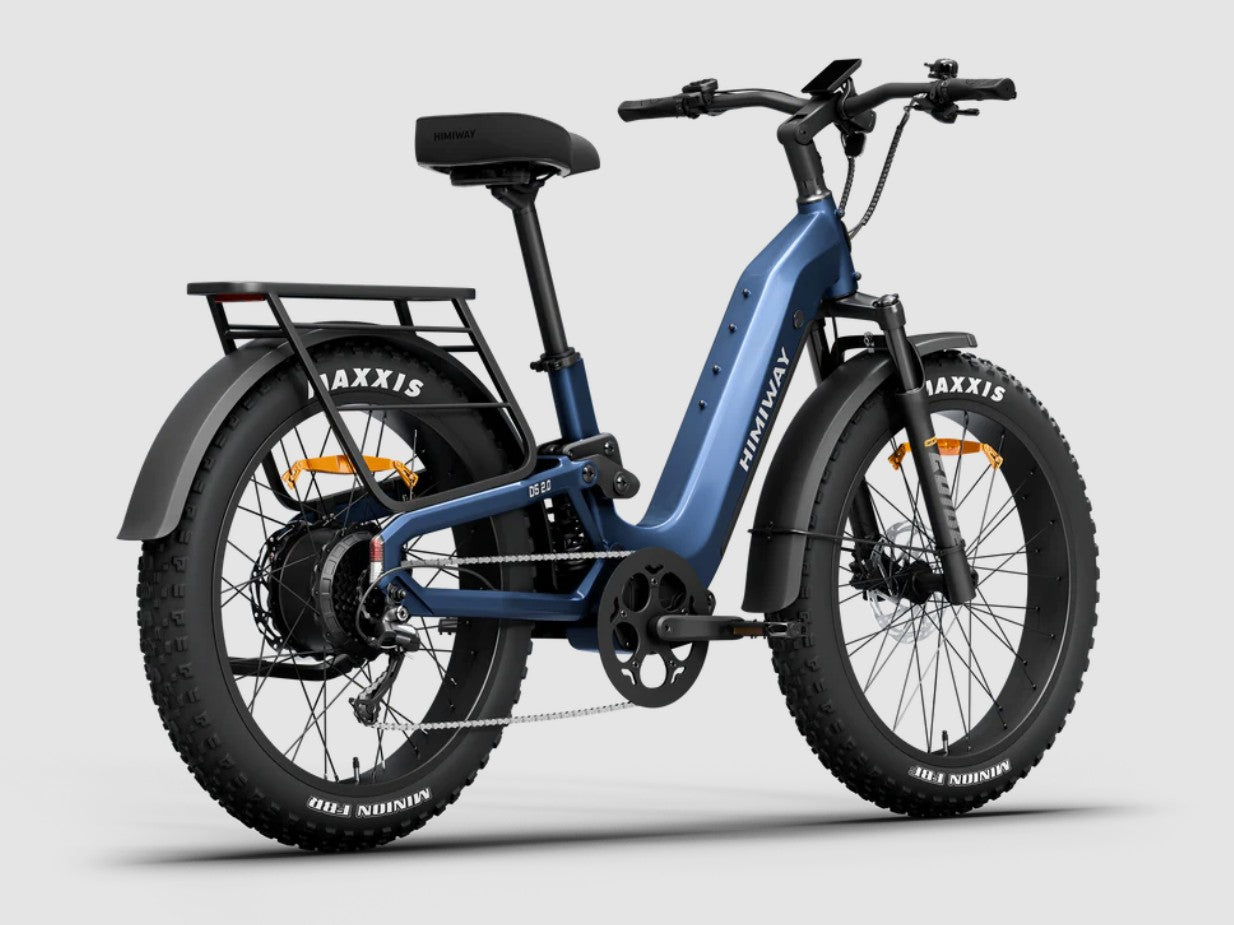

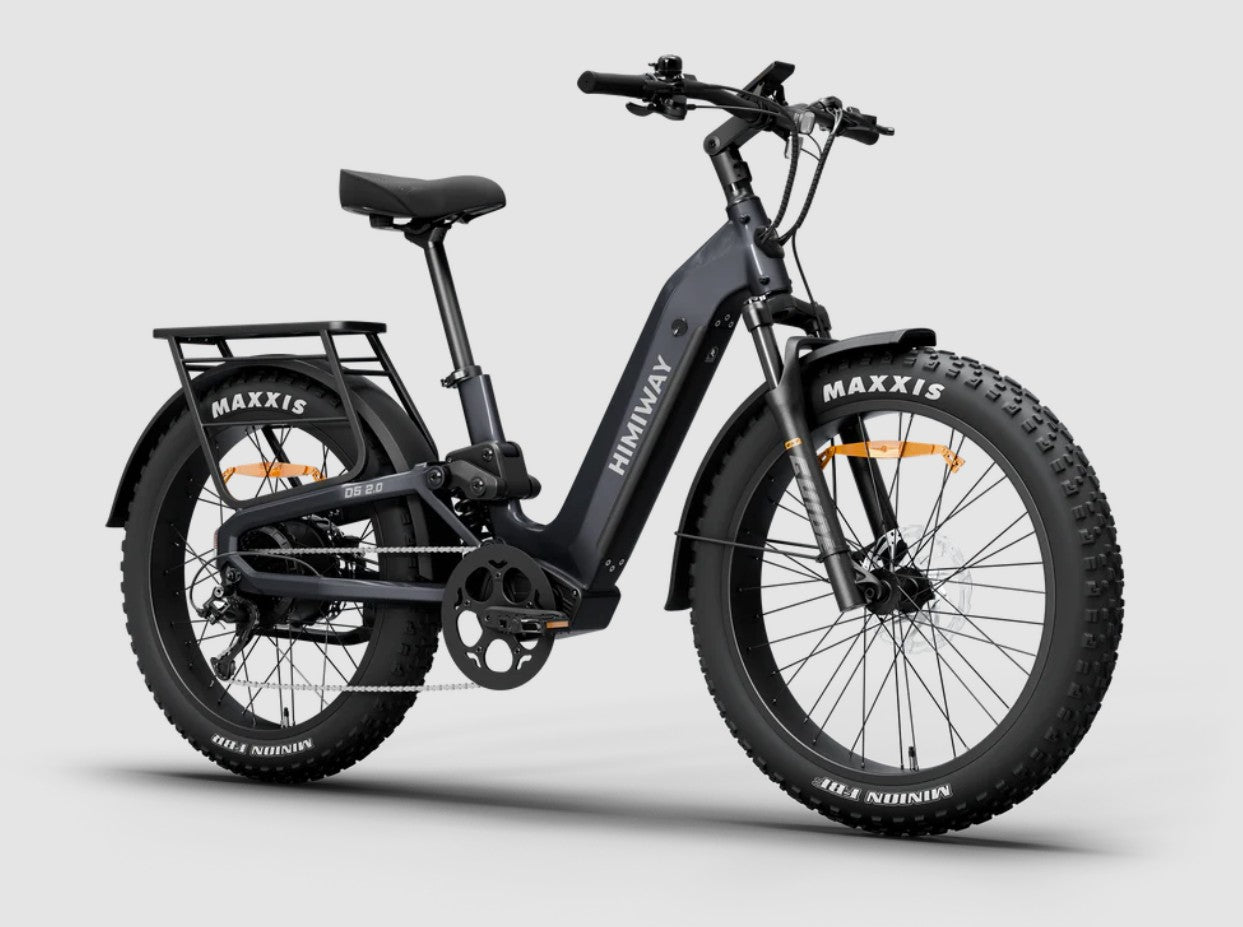

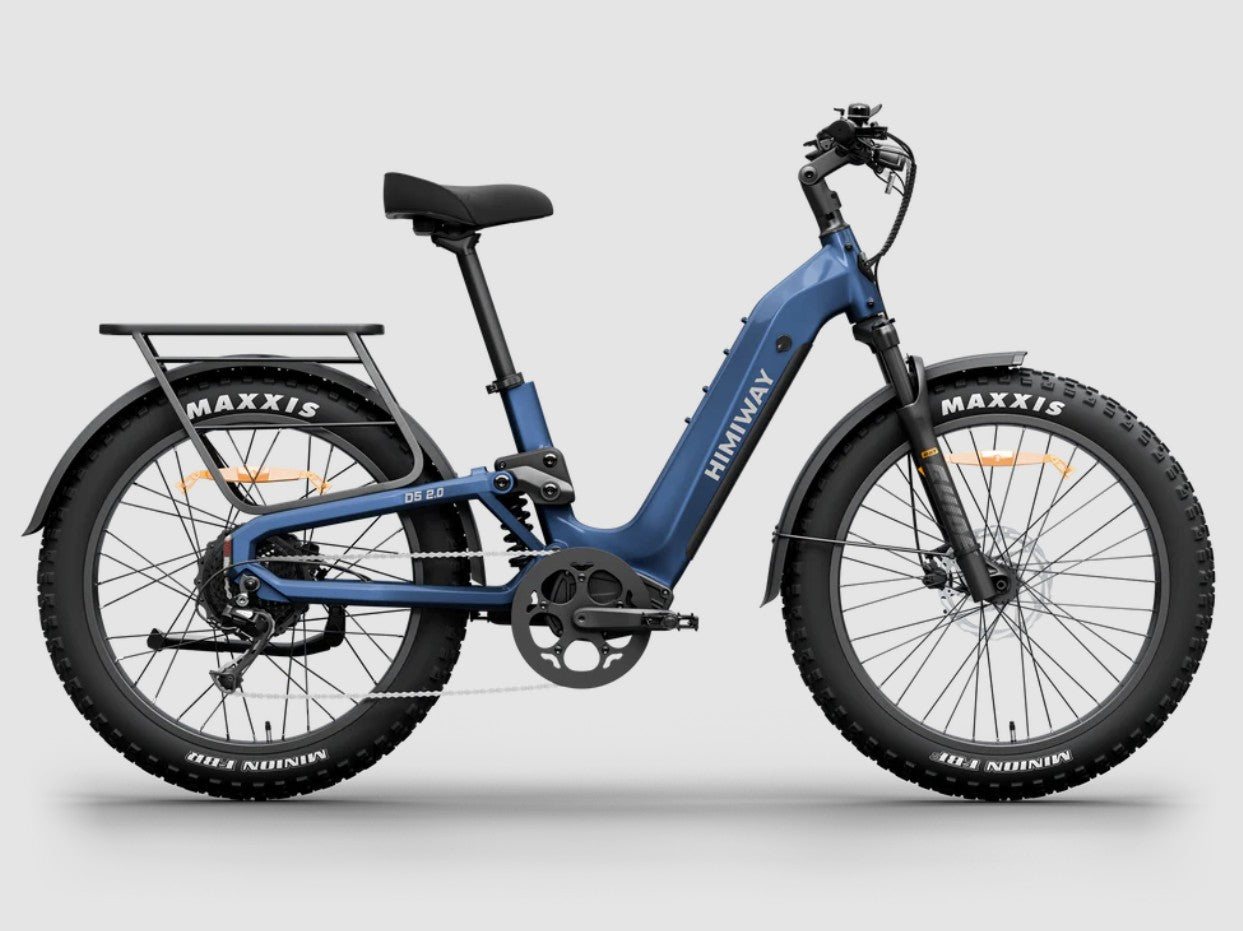

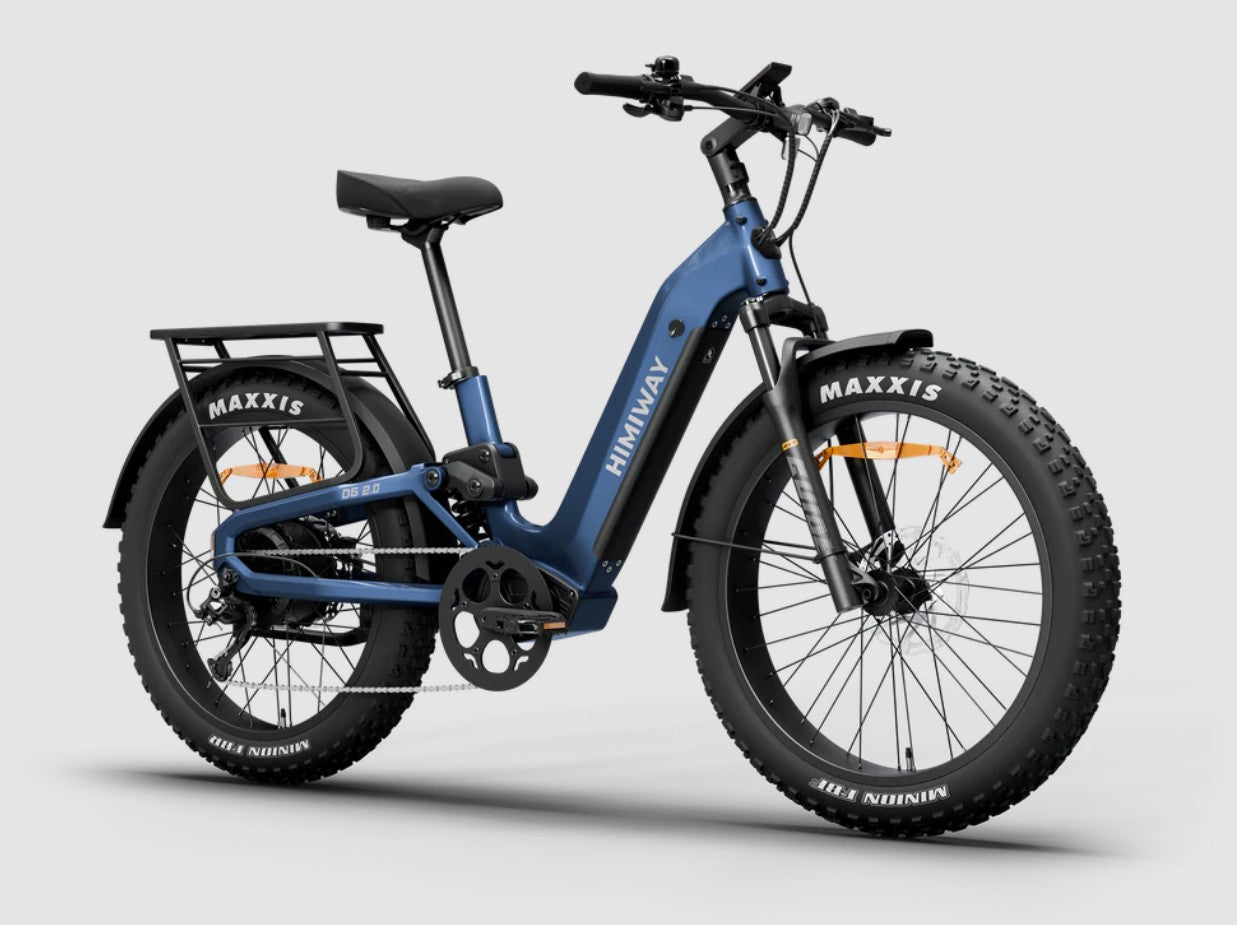

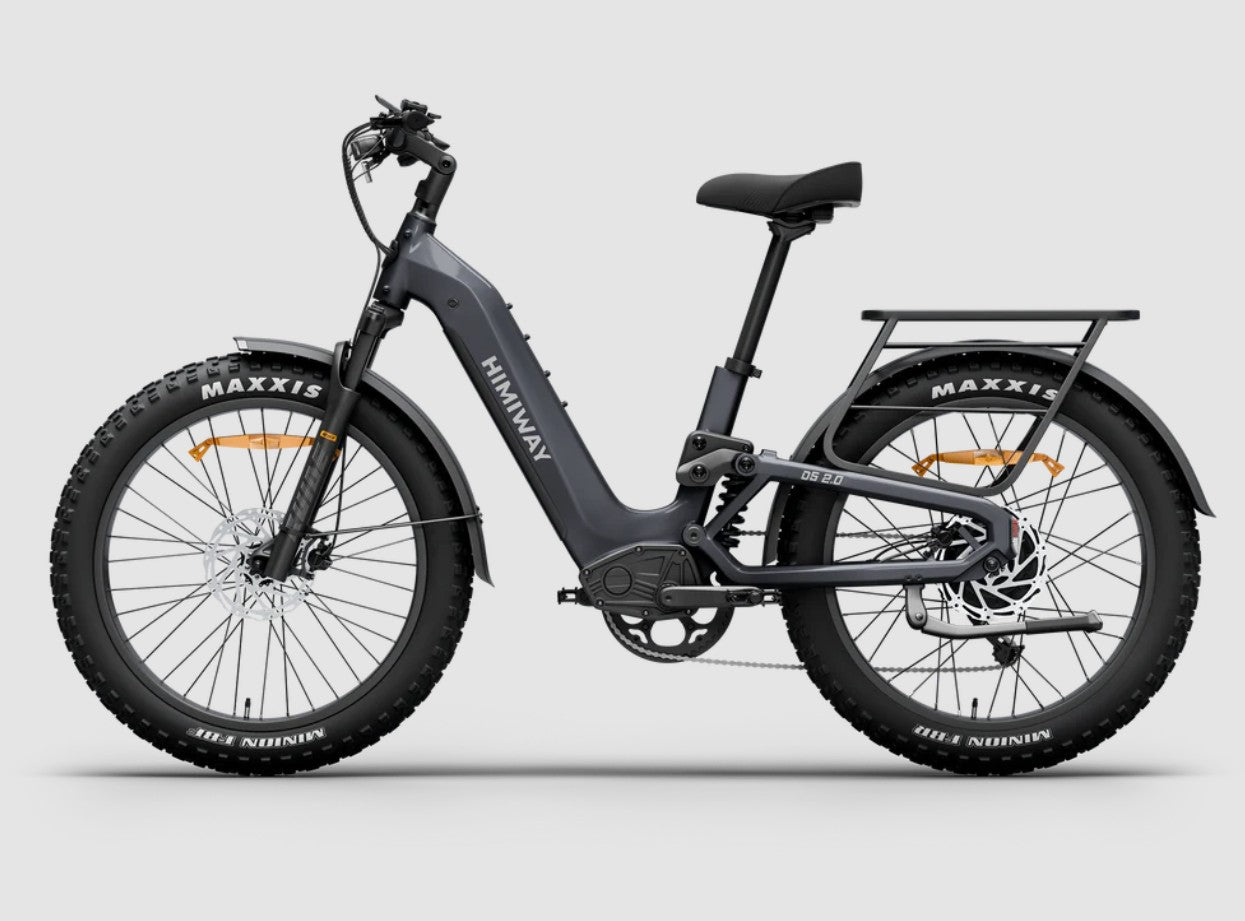

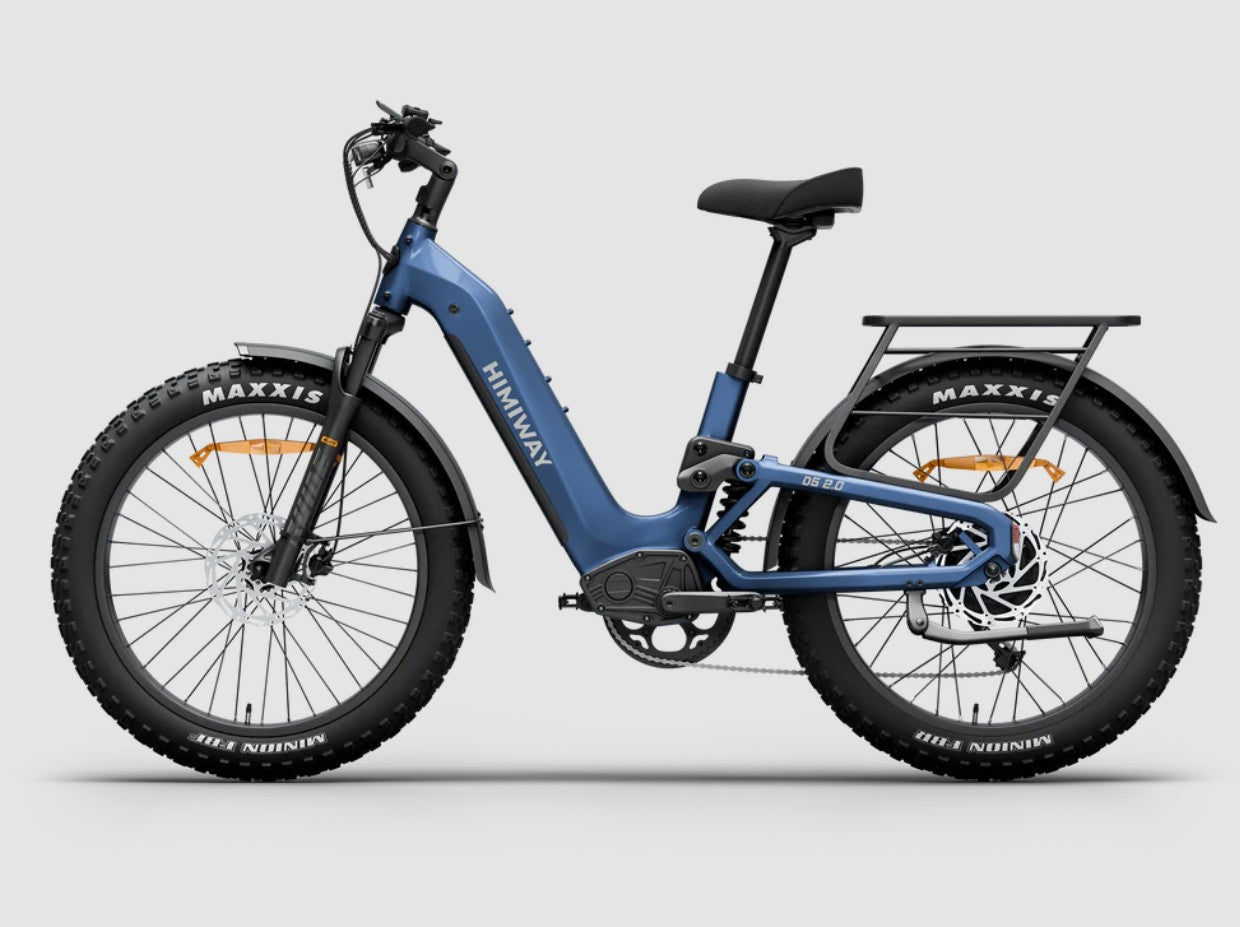

Himiway D5 2.0 ST eBike

Technical Specifications

• Frame  Aluminum Alloy, Rear Wheel 130mm Travel
• Fork  RST Hydraulic suspension 100mm travel with Lock-out, Nutted, Rebound adjustable

• Motor  48V, 750W, 90Nm
• Battery  48V, 15Ah , IPX6, Certificated by UL 2271
• Cell  Samsung/LG 21700 cell, Certificated by UL 2580
• Display  3.5" Full color, High brightness, Bluetooth, Adjustable angle
• Sensor  Torque / Cadence Switchable
• Throttle  Ergonomic Thumb Throttle
• Pedal assist  Auto Pedal Assistant + 5 PAS Levels
• Walk mode 1.9~3.7 MPH
• Front light  120 Lux high-output integrated LED, adjustable angle
• Rear light  Braking Indicator, turn signal, rear light steady/flash, integrated with the frame

• Max speed (default) 20 MPH
• Max speed adjustable range 4~28 MPH
• Throttle range  40 Miles
• Pedal assist range  70 Miles

• Chainrings  52T Narrow Wide Chainring
• Crankset  Aluminum Alloy, 170mm
• Freewheel  8-speed, 13-32T
• Rear derailleur  SHIMANO 8-speed
• Shift lever  SHIMANO 8-speed
• Chain  8-speed

• Brake  Tektro Hydraulic Disc Brake
• Rotors  203mm Front/180mm Rear
• Brake levers Aluminum Alloy, with power cutoff

• Rims Aluminum alloy
• Front hub Aluminum alloy, nutted
• Tire Maxxis Minion FBF / FBR 26 x 4.0, Tubeless ready

• Handlebar Aluminum Alloy, Φ31.8mm, 680mm
• Grips Durable ergonomic grips, lockable
• Stem 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 90mm
• Saddle Memory Foam comfort ergonomic seat
• Seatpost Aluminum Alloy, Φ33.9mm
• Clamp Aluminum Alloy, quick release

• Fenders Aluminum Alloy, front and rear full coverage
• Rear rack MIK HD Compatible Alloy
• Kickstand Aluminum Alloy, included, rear mount

• Bike weight 92lbs
• Bike load capacity 400lbs
• Rear rack load capacity 60lbs

• Ul certification UL 2849
